KBK Internal Electric Drive Unit
A flexible and efficient material handling solution.
Product Details

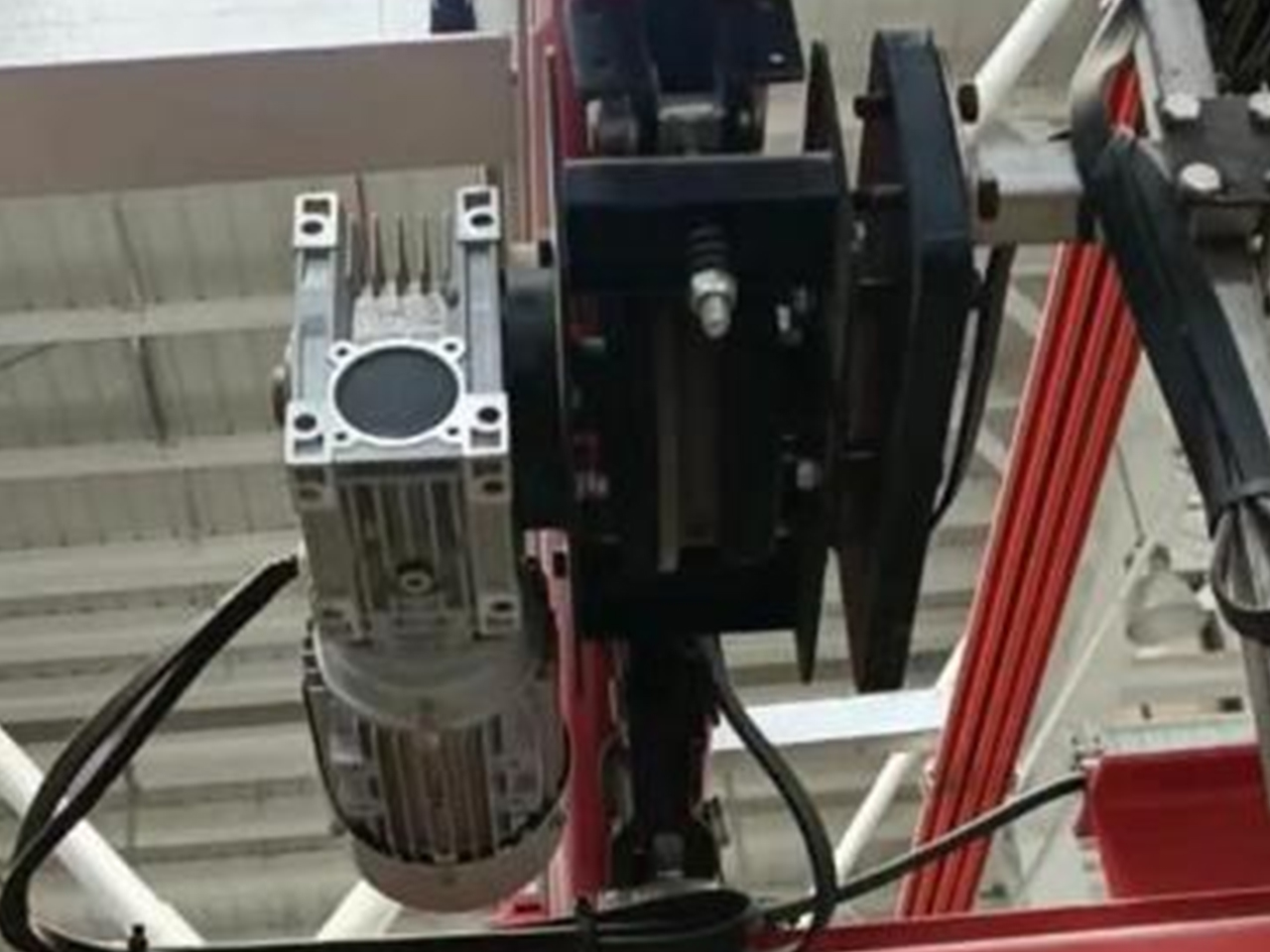

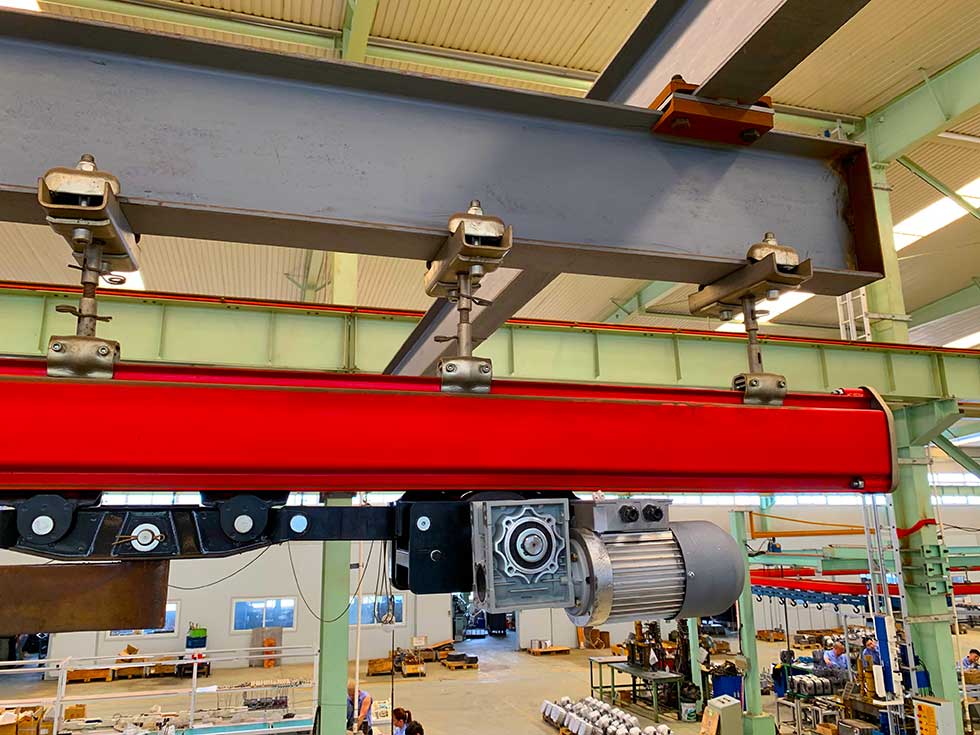

The KBK II friction-wheel drive unit is designed for KBK II rails. Motor power is transmitted to spring friction wheels running on the lower rail flange.
Its cylindrical motor and worm gear structure provides high power and smooth operation, with single-speed, two-speed and variable-frequency control options.

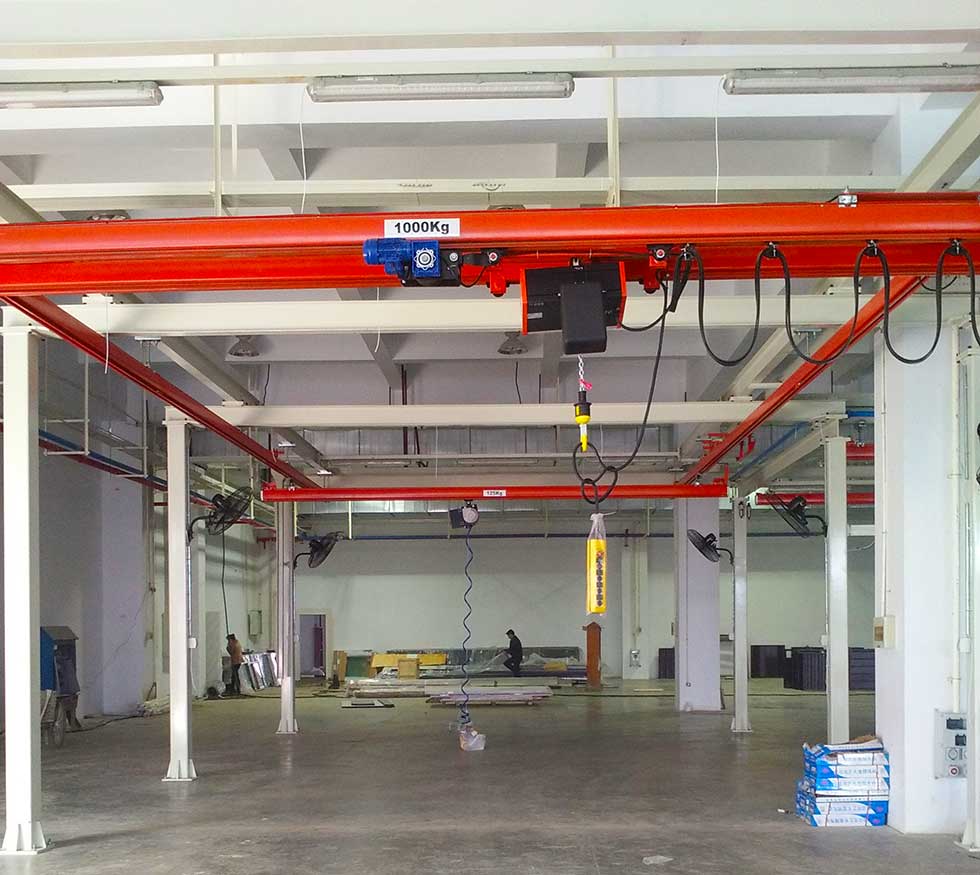

Combined with KBK flexible modular cranes, it is widely used for electric travel on single- and double-beam cranes.
Technical Specifications
| Name | Model | Load Capacity (kg) | Turning Radius (m) | Travel Speed (m/min) | Motor Power (kW) | Protection Rating | Power Supply |
|---|---|---|---|---|---|---|---|
| Electric Drive Unit | KBKII | 500–2000 | 1.5 | 18 | 0.18 | IP54 | 380V / 50Hz |
| Electric Drive Unit | KBKII | 500–2000 | 1.5 | 24/6 | 0.25/0.06 | IP54 | 380V / 50Hz |
Notes:
1. Load capacity depends on the crane used with the unit.
2. Turning radius primarily applies to single-curved-track suspension cranes.
