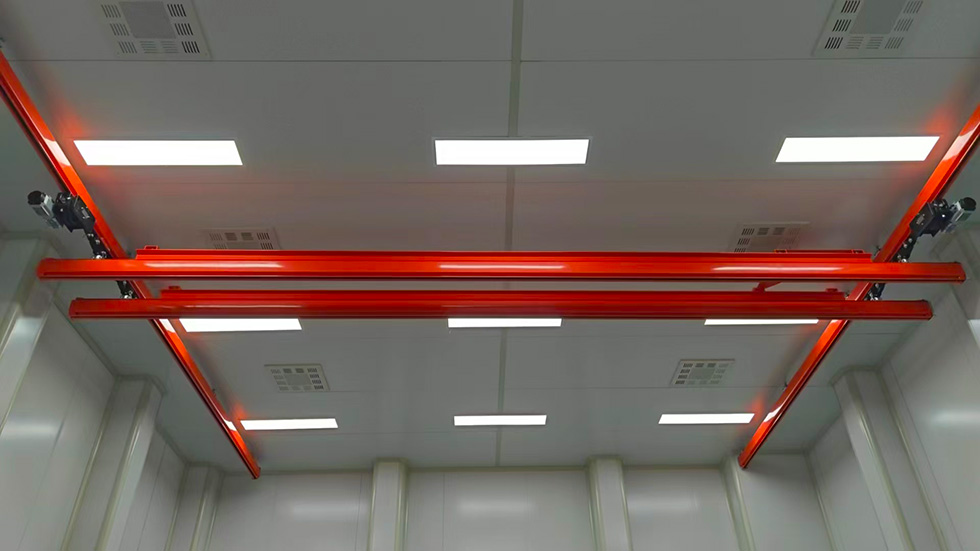

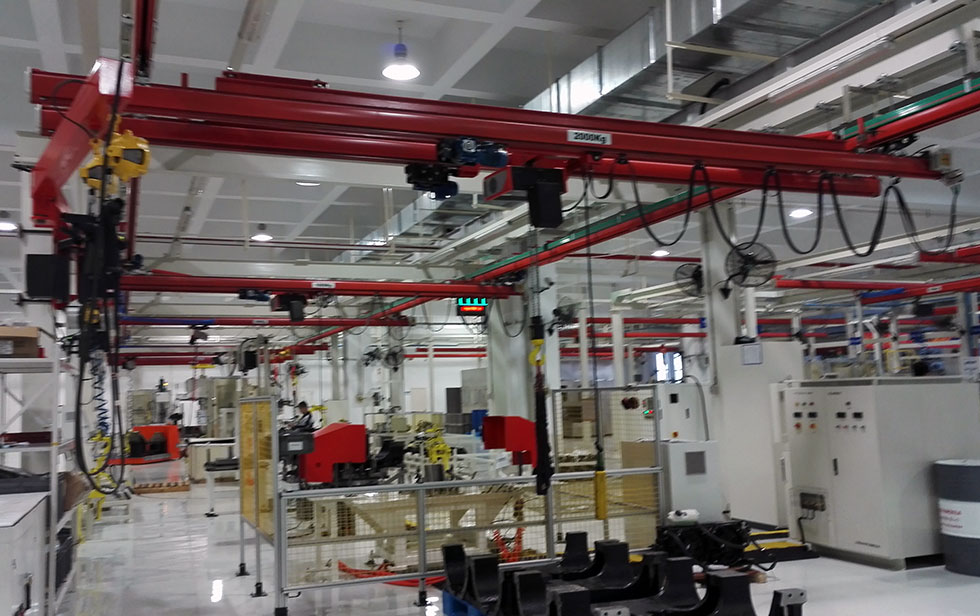

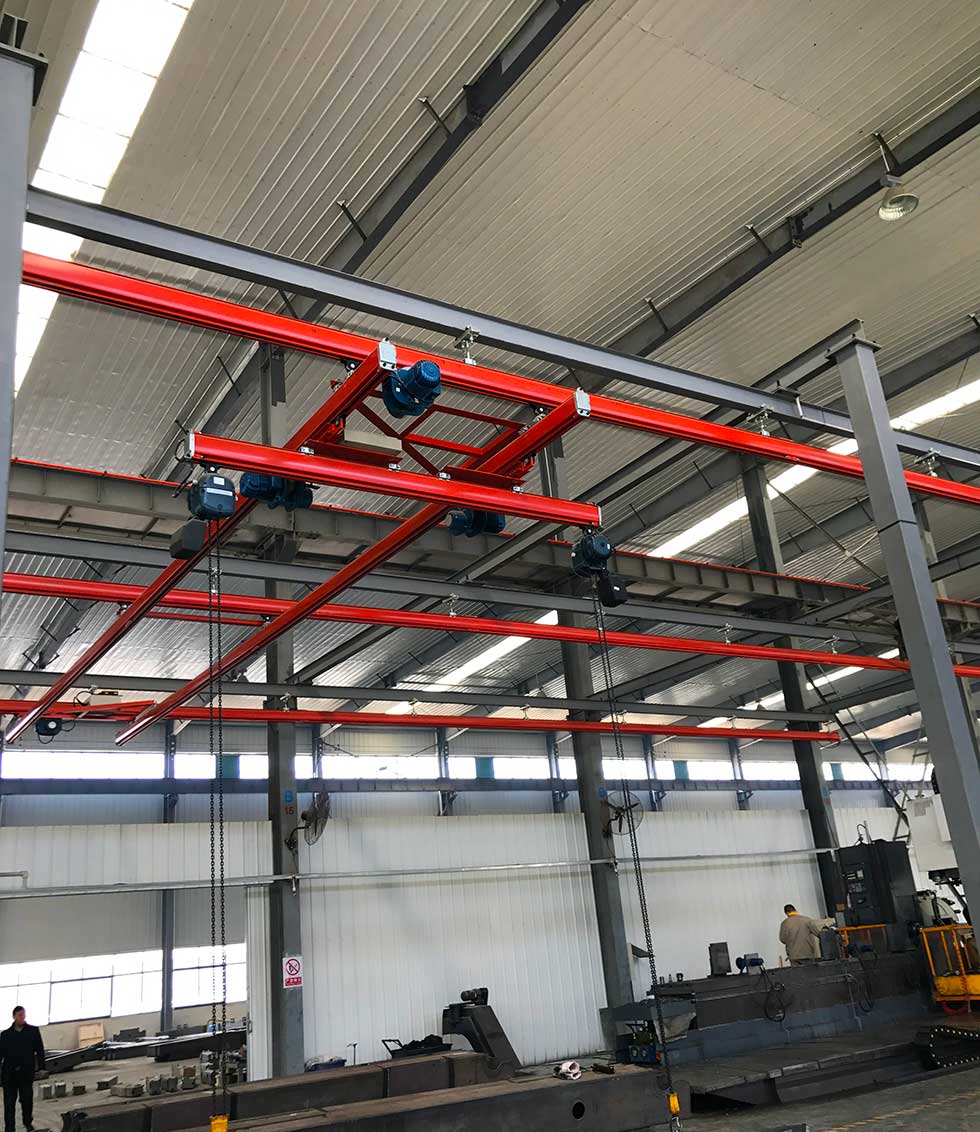

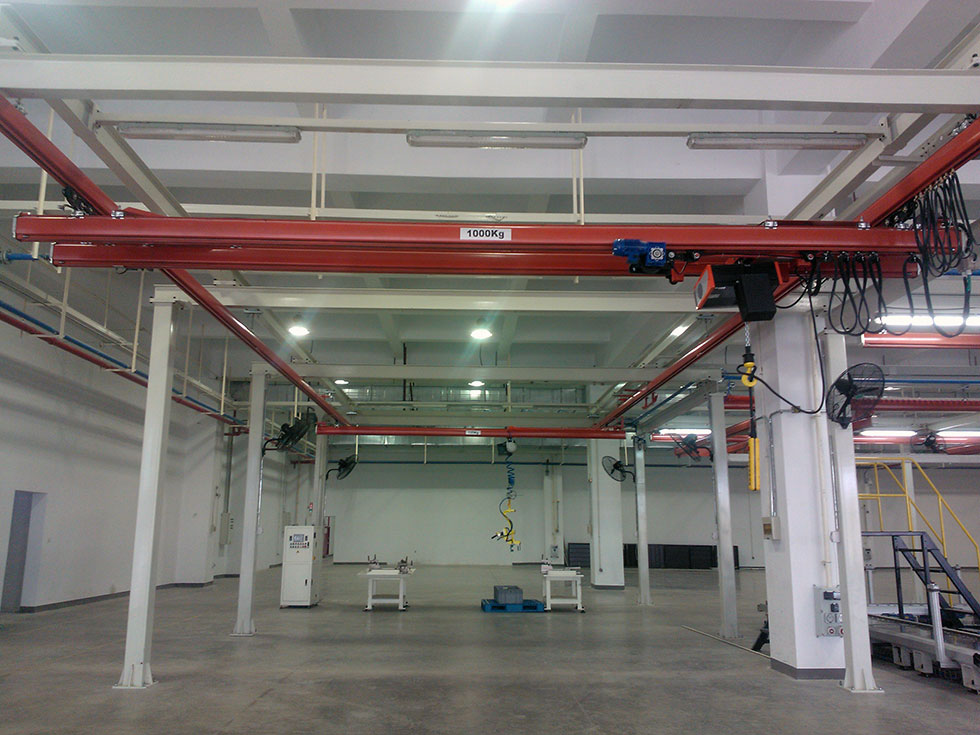

Double-Beam Suspension Crane
The double-beam suspension crane efficiently achieves regional overhead material handling.
By using two KBK rails as the main girders, the crane’s lifting capacity and span are increased, allowing for more extensive use of space.
With the friction wheel drive system, the crane can operate electrically.
The rigid suspension system, rigid end beams, and counter-pressure wheel devices enable large overhang of the main beam, telescoping of auxiliary lifting beams, and the use of a rigid manipulator.
Using the forklift attachment, the crane facilitates goods retrieval and delivery in a vertical warehouse.

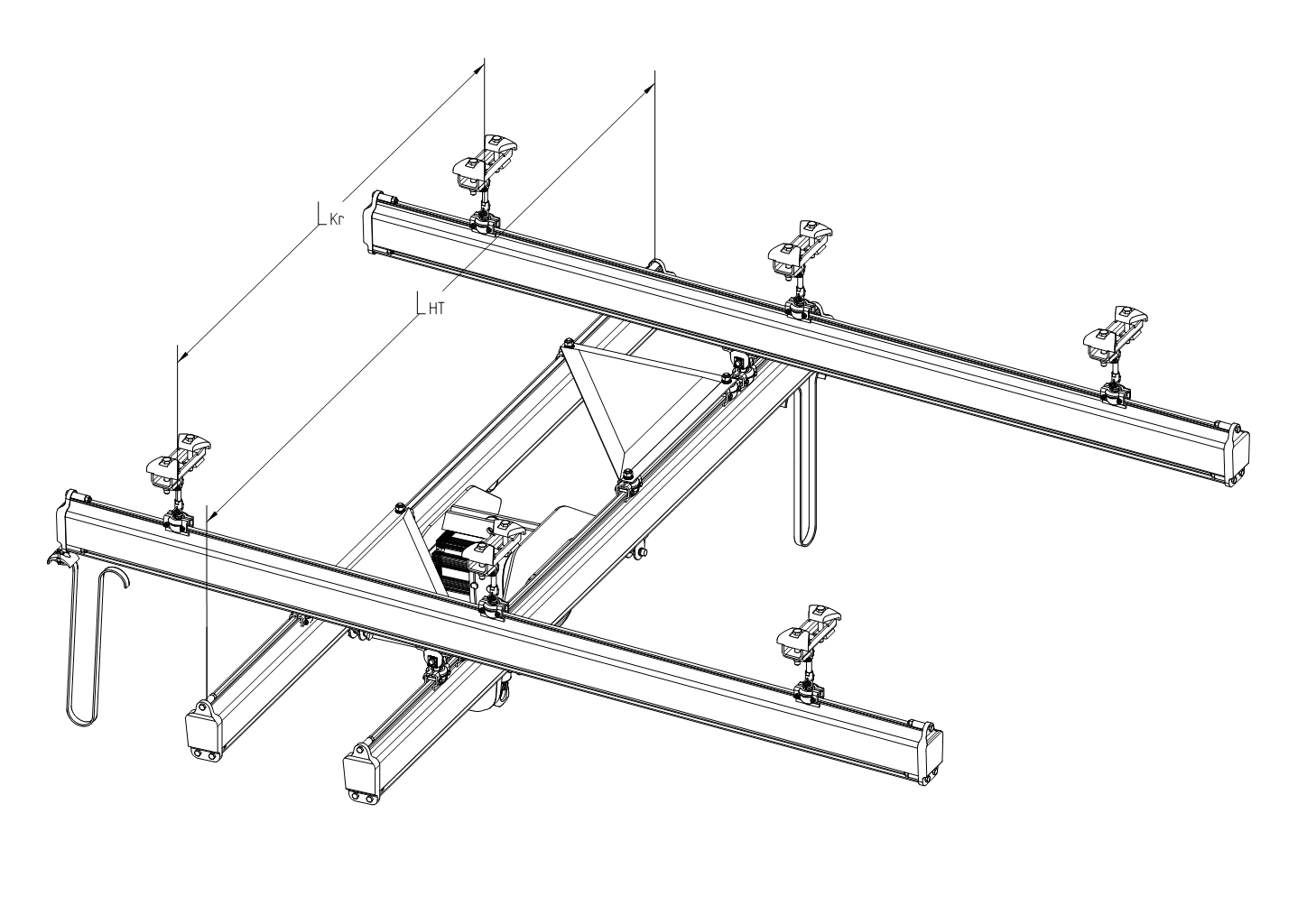

Track Type | Double-Beam Suspension Crane | Load Capacity | |||||
80 KG | 125 KG | 250 KG | 500 KG | 1T | 2T | ||
KBKI | Span Lkr | 6.2 | 6.2 | 4.7 | 3.2 | ||
Beam Length LHT | 9 | 9 | 6 | 4 | |||
KBKII-L | Span Lkr | 7.6 | 7.6 | 7.6 | 6.5 | 4.5 | |
Beam Length LHT | 10 | 10 | 10 | 7 | 5 | ||
KBKII | Span Lkr | 10 | 10 | 10 | 8.5 | 6.2 | 3.6 |
Beam Length LHT | 12 | 12 | 12 | 11 | 7 | 4 | |
KBKII-T | Span Lkr | 7.5 | 6.5 | ||||
Beam Length LHT | 8 | 7 | |||||
