Single-Beam Suspension Crane
The Single-Beam Suspension Crane efficiently achieves regional overhead material handling.
The use of a flexible main beam suspension allows for variable track gauge operation.
The rigid end beams and friction-wheel drive system enable electric operation of the crane.
The rigid suspension system, rigid end beams, and counter-pressure wheel devices allow for greater main beam overhang, telescoping of auxiliary lifting beams, and the use of rigid mechanical arms.
Main Technical Parameters
Track Type | Single-Beam Suspension Crane | Load Capacity (kg) | ||||
80 | 125 | 250 | 500 | 1000 | ||

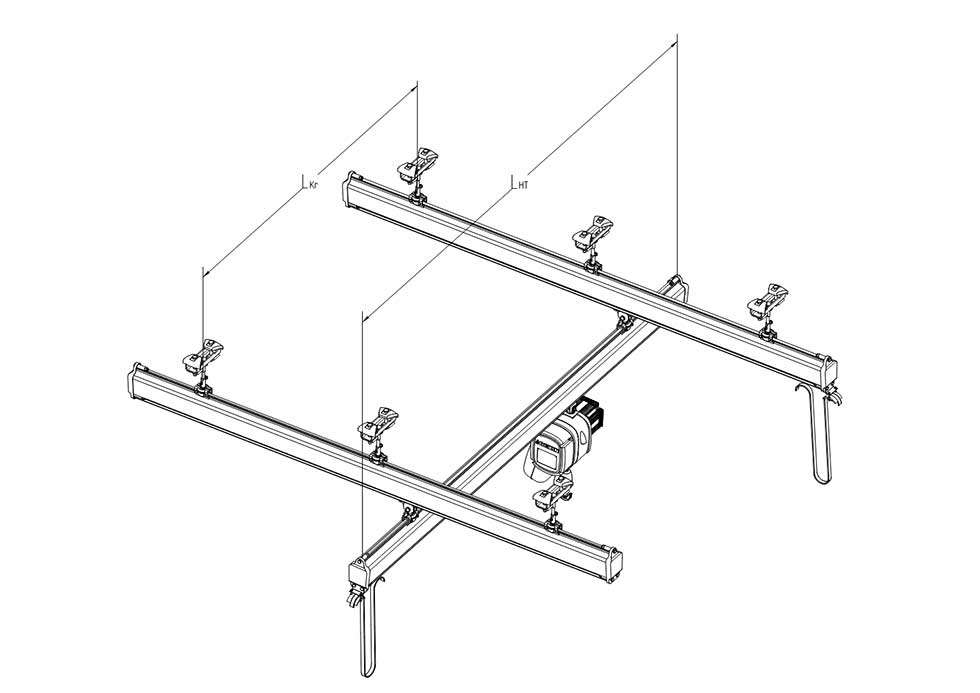

KBKI | Span Lkr | 4.6 | 4.6 | 2.8 | 1.6 | |
Beam Length LHT | 6 | 5 | 3 | 2 | ||
KBKII-L | Span Lkr | 7.4 | 7 | 6.1 | 3.7 | 1.7 |
Beam Length LHT | 8 | 8 | 7 | 4 | 2 | |
KBKII | Span Lkr | 7.7 | 7.7 | 7.4 | 6 | 3.7 |
Beam Length LHT | 8 | 8 | 8 | 7 | 4 | |
