Single-Track Suspension System
The single-track suspension system efficiently achieves linear overhead material handling, and can form open and closed-loop track systems with straight, circular, and multi-branch tracks.
KBK standard components include straight rails, curved rails, switches, lifting platforms, turntables, manual trolleys, friction-wheel drive devices, suspension devices, and more.
Main Technical Parameters

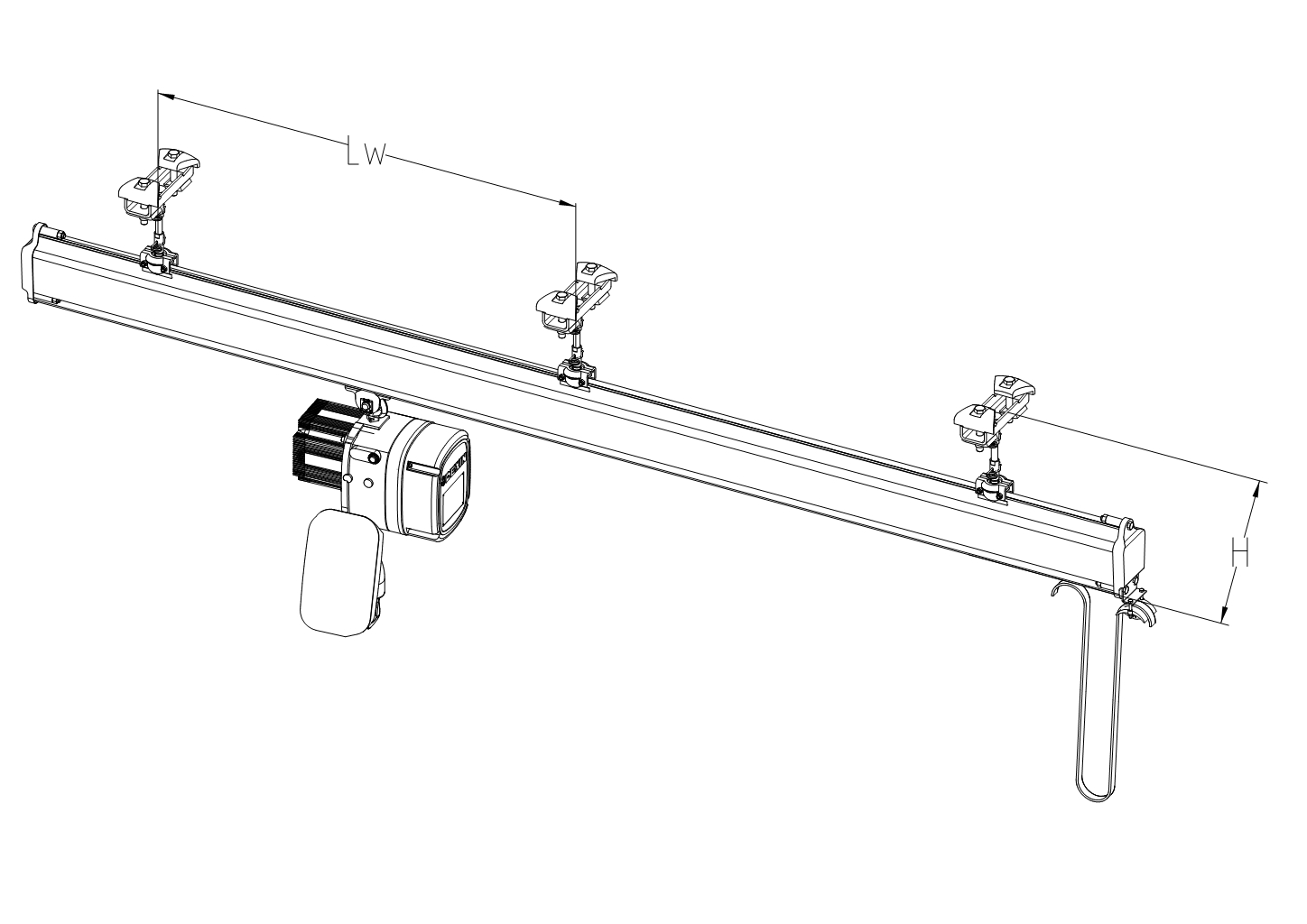

Track Type | Structural HeightH (mm) |
Suspension Point DistanceLW （m） | Load Capacity（kg） | |||||
80 | 125 | 250 | 500 | 1000 | 2000 | |||
KBKI | 250 | 5 | 4.1 | 2.5 | 1.6 | |||
KBKII-L | 370 | 8 | 7 | 5.5 | 3.2 | 2.1 | ||
KBKII | 400 | 8 | 8 | 7.5 | 5.1 | 3.2 | 1.5 | |
