Product Features

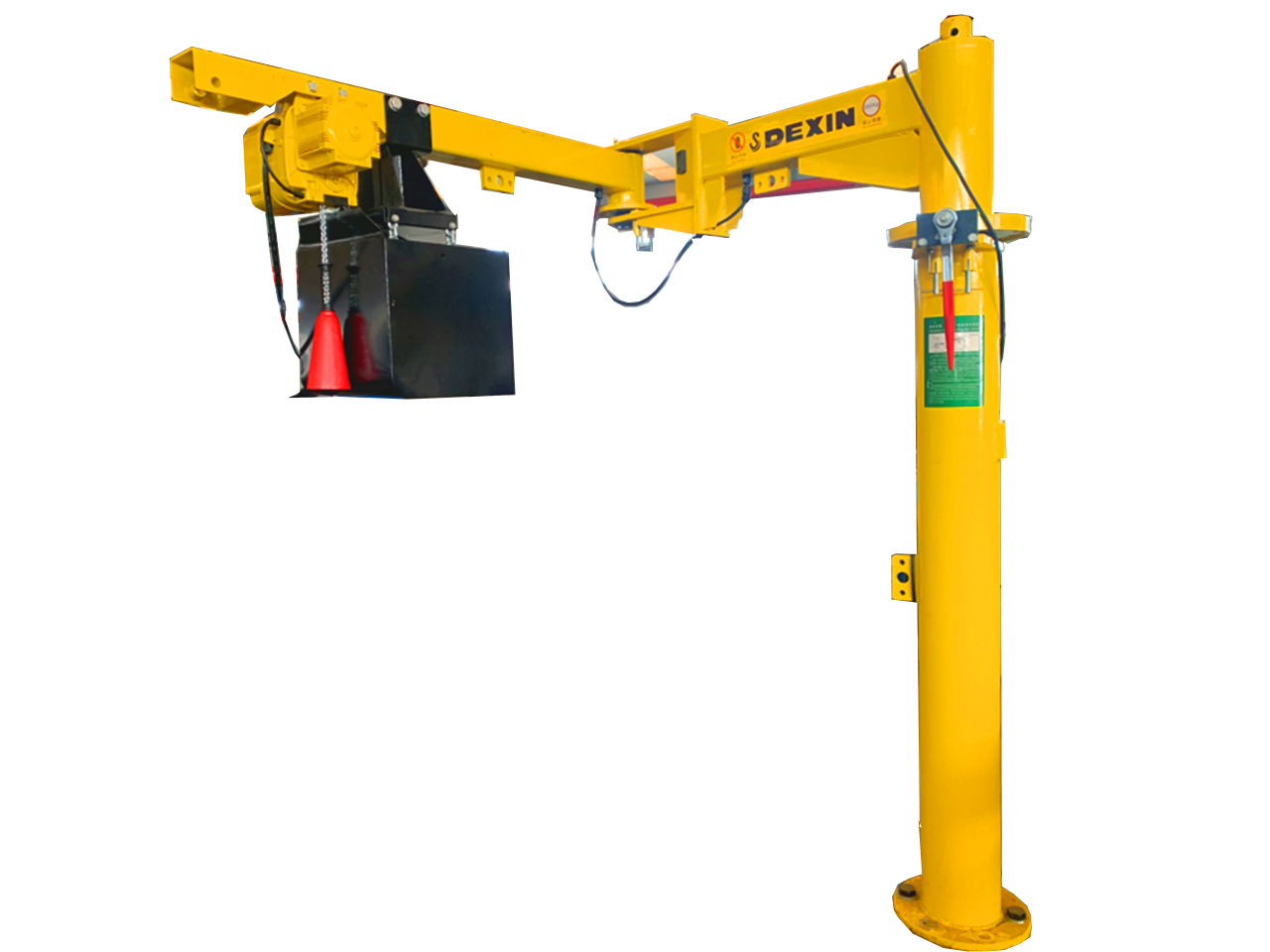

The wind turbine hoist is a product developed using the mature technology of PK-type electric chain hoists. In addition to the characteristics of PK-type electric chain hoists, the hoist has been optimized for its lifting height (170m), continuous movement, and harsh environmental conditions. It is widely used in the wind power industry and is an efficient lifting device for the maintenance and servicing of wind turbines.
Industry Applications and Partners
The wind turbine hoist has been widely applied in the wind power industry, becoming a reliable choice for wind turbine maintenance and servicing.
With over a decade of experience, we have become a qualified supplier to several well-known wind turbine manufacturers, including: Goldwind, Envision Energy, Shanghai Electric, Dongqi Wind Power, CRRC Wind Power, Chongqing Haizhuang, and Xiangdian Wind Energy.
Technical Specifications
The product model covers a wide range of wind turbine specifications, meeting the needs of different equipment:
1.5MW - 20MW
Model | PK2-1 | PK5-1 | PK10-1(2) | |
Lifting Capacity (kg) | 250，300,350 | 500,650,800 | 1000 | 2000 |
Number of Load Chains | 1 | 1 | 1 | 1 |
Lifting Speed (m/min) | 10-12 | 10-12 | 10-12 | 6 |
Lifting Height (m) | 80,100,110,120,140,160,170 | |||
Motor Power (kW) | 1.2 | 1.8 | 2.5 | 3 |
Duty Cycle (%) | 40-60 | |||
Protection Rating | IP55 | |||
Duty Classification | M4 | |||
Operating Conditions | Standard, High-Altitude, Offshore Corrosion-Resistant Types | |||
Installation Methods | Fixed, Monorail Trolley, Articulating Boom, Single Beam | |||
Note: Given the unique applications of wind turbine hoists, the above technical parameters are indicative and may vary based on customer specifications, nacelle interface designs, and chain box configurations (top-mounted or bottom-mounted with a guide chain tube).
